Product Description

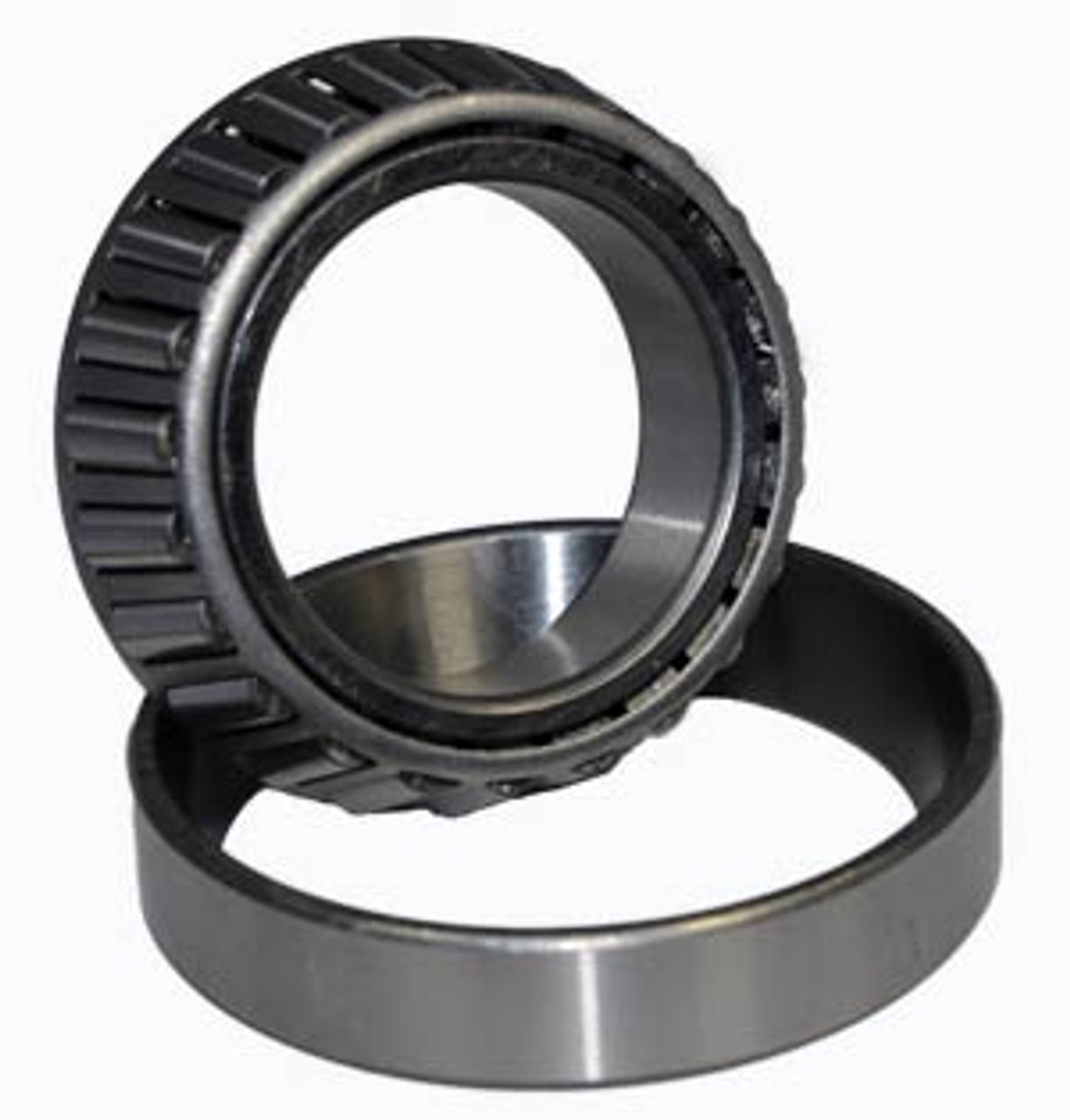

Tapered Cup and Cone Set - L68149 Cone + L68110 Cup
2.328" OD x 1.3772" ID x 0.625 Width
2.328" OD x 1.3772" ID x 0.625 Width
Technical Specs
Product Type Tapered Roll Bearings - Inch Inner Ring L68149 Outer Ring L68110 Bore (d) 1.3772 inches Outer Diameter (D) 2.3280 inches Assembled Width (T) 0.6250 inches Cone Width (B) 0.6600 inches Cup Width (C) 0.4700 inches Shaft Radius (R) 0.14 inches Housing Radius (r) 0.05 inches Load Ratings (Dynamic) 159 lbs Load Ratings (Static) 216 lbs Limiting Speed 7600 rpm Weight 0.38 lbs
